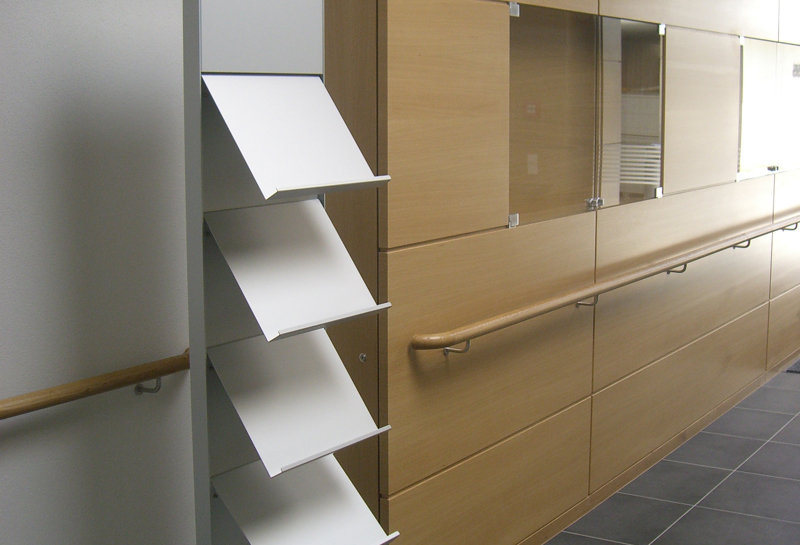

quintessenz Prospektständer

... suitable for the quintessenz guidance system

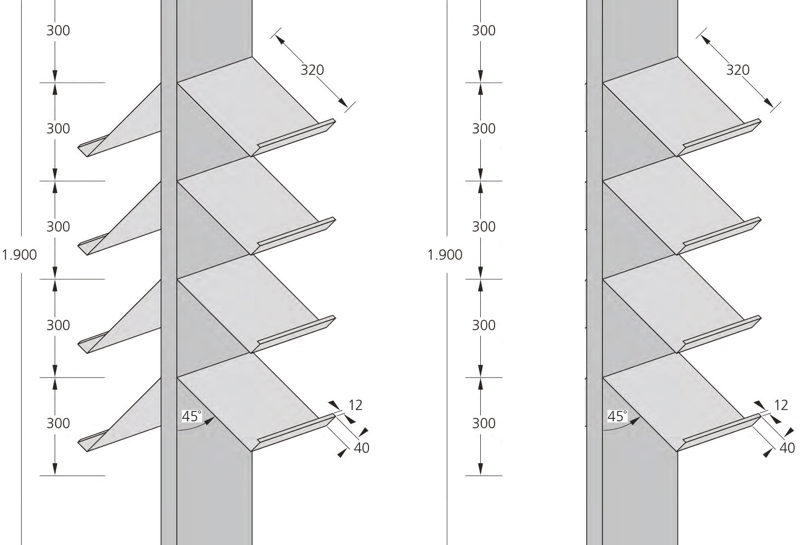

• dimensions: Total height approx. 1,900 mm, top panel 300 mm x 420 mm (H x W).
• brochure shelves 320 x 420 mm (l x w) inclined at an angle of 45° with front upstand of 40 mm as fall-out protection
• height distance of the shelves 300 mm to each other
• depth of the pedestal body 48 mm
• consisting of: lateral system profiles, top and base panels as well as 4 aluminium brochure shelves at the front
• closed flush at the back with continuous aluminium surface
• brushed stainless steel base plate with plastic anti-scratch soles
• colour design: aluminium parts E6/EV1 silver anodised
• without lettering
• the brochure stand is delivered pre-assembled and ready for installation
